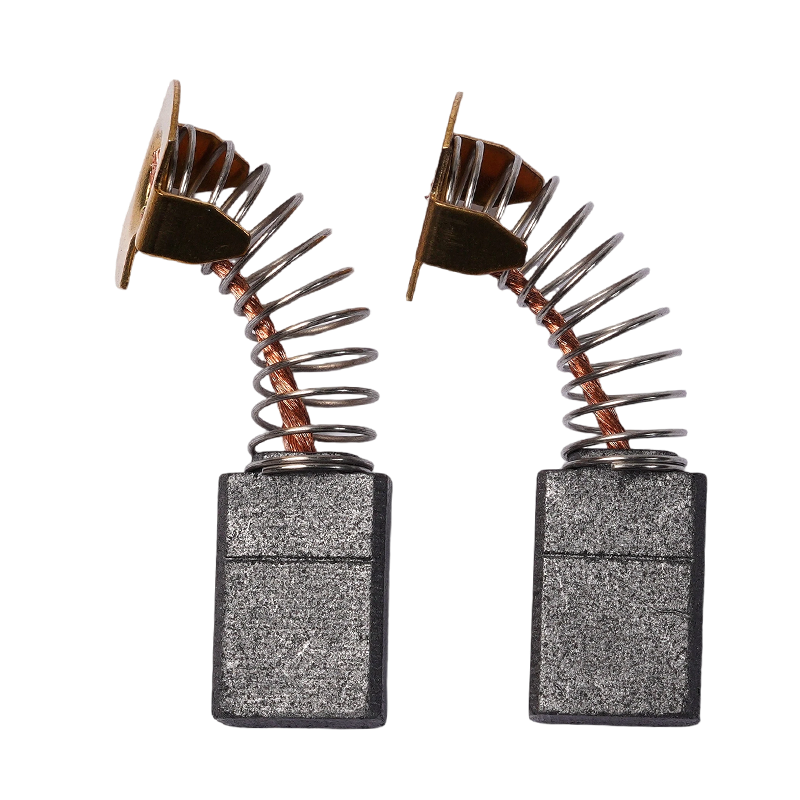

Power Tools Carbon Brushes For DCA Manufacturers

What Material Science Innovations and Precision Manufacturing Processes Define the Performance of Power Tools Carbon Brushes For DCA?

DCA power tools are widely recognized in the professional construction and fabrication sectors for their reliability and performance in demanding work environments. The core of this consistent operation lies in the electric motor, specifically the Power Tools Carbon Brushes which must reliably transfer electrical current while managing heat and friction. For a tool to deliver sustained power and maintain efficiency, the carbon brush components must be engineered with advanced materials and manufactured with exacting dimensional accuracy. Manufacturers designated as Wholesale Power Tools Carbon Brushes For DCA Manufacturers must prioritize these factors to meet the high-volume, high-reliability needs of the global market.

Material Formulation for Commutation and Wear Resistance:

The formulation of the carbon block is a finely tuned science, balancing electrical conductivity, friction control, and mechanical strength to achieve maximum service life and smooth operation across varied applications.

Graphite-Based Composites for Universal Tools: For general-purpose power tools such as standard drills, jig saws, and orbital sanders, specialized electrographitic and carbon-graphite composites are frequently deployed. These materials are formed by mixing high-ppurity carbon powders with carefully controlled amounts of resin binders, which are then molded and baked at high temperatures. The resulting structure features high porosity and low apparent density, providing excellent self-lubricating qualities essential for minimizing contact wear on the commutator. The inherent structure is optimized to create a smooth, consistent patina film on the commutator surface, which ensures stable, arc-free current transfer. This stability is directly correlated with the overall reliable motor performance of the tool in everyday tasks.

Copper-Graphite Grades for High-Load Grinders and Cutters: DCA’s range of heavy-duty angle grinders and circular saws requires brushes capable of handling significantly higher current densities, often under sudden and sustained loads. For these applications, copper-graphite materials are critical. Manufactured using advanced powder metallurgy techniques, the fine copper powder is uniformly blended with the graphite base. The copper content drastically improves the brush’s electrical conductivity and its capacity for rapid heat dissipation. This ability to shunt heat away from the working face prevents thermal runaway and degradation of the commutation film, ensuring high current can be transferred without sparking. The precise calibration of the copper-to-graphite ratio is vital; high copper guarantees reliable conductivity, while sufficient graphite ensures adequate lubrication for commutator protection.

Reinforced Resins for Impact and Rotary Hammers: Tools designed for percussive action, like rotary and demolition hammers, subject the carbon brush to intense mechanical shock and vibration. To counteract the risk of fracture, these brushes incorporate specialized resin reinforcement. The carbon matrix is deeply impregnated with thermosetting resins that are cured under specific thermal cycles. This process imparts superior mechanical strength and structural integrity to the carbon block, drastically improving its resistance to chipping and cracking under physical stress. This reinforced composite is engineered to maintain consistent spring pressure and contact even during heavy impacting, which is fundamental to achieving long-lasting durability in these challenging tool categories.

Optimized Film Formation Characteristics: The critical interface function of Power Tools Carbon Brushes For DCA depends on its material’s capacity to rapidly and consistently form a protective patina layer on the commutator. This micro-layer is not only the site of electrical transfer but also the tool's primary lubricant. Brush grades are formulated with specific chemical additives that accelerate the formation of this film. The stability and consistency of this layer prevent excessive friction and suppress the onset of destructive arcing and pitting, ensuring smooth operation and prolonging the life of the entire commutator assembly.

Manufacturing Precision and Dimensional Consistency:

The physical accuracy of the carbon brush is just as important as its material composition. Any deviation in size or geometry can lead to catastrophic motor failure or rapid wear.

Sub-Millimeter Dimensional Tolerance: DCA tools operate with exceptionally tight tolerances in their brush holders. Accordingly, the carbon brushes are manufactured to ultra-fine dimensional precision. This ensures the brush slides freely within the holder with minimal clearance, preventing sticking or binding. Sticking leads to intermittent contact, severe arcing, and ultimately, tool failure. Advanced quality control systems employing high-magnification optical inspection and laser metrology are utilized to verify every batch, confirming the parallelism of the sides and the precise dimensions required for proper fitment across all Power Tools Carbon Brushes For DCA variants.

Tailored Contact Surface Finishes: The surface finish of the brush that contacts the commutator is meticulously controlled. For many applications, the brushes are precision-ground to specific profiles, such as a slight radius or a simple flat face, designed to optimize the initial contact patch. This precision machining process minimizes the required 'break-in' period after installation, allowing the brush to immediately begin establishing the uniform commutation film. A consistent surface finish guarantees stable current density across the entire contact area, ensuring reliable motor performance from the moment the tool is switched on.

What Integrated Safety Features and Robust Quality Control Systems Guarantee the Long-Term Reliability of Power Tools Carbon Brushes For DCA?

The operational success of high-throughput tools depends not only on material quality but also on the mechanical and electrical integrity of the entire brush assembly and the supply chain’s commitment to consistency.

Integrated Safety Mechanisms:

Modern Power Tools Carbon Brushes are designed with integrated safety and maintenance features to protect both the user and the expensive motor components.

Wear Indicator Auto-Stop Systems: A critical feature for preventing severe motor damage is the inclusion of an automatic shut-off mechanism. This system involves embedding a small, highly conductive sensor or wire within the brush body at a predetermined, minimum operating length. When the brush wears down to this threshold, the sensor is triggered, instantaneously and safely breaking the electrical circuit to the motor. This prevents the metallic spring or any non-carbon brush assembly components from physically contacting the high-speed commutator. Such metal-on-metal contact would cause severe scoring, rapid brush failure, and often irreparable motor damage. This preventative feature is key to the long-lasting durability and safe maintenance of DCA tools.

High-Flex Pigtail and Termination Integrity: The copper pigtail connection is essential for carrying the high current load. For Power Tools Carbon Brushes For DCA designed for continuous use, manufacturers select multi-strand, ultra-flexible copper cables that resist mechanical fatigue caused by the brush constantly moving and flexing as it wears. The electrical and mechanical bond between the pigtail and the carbon block is achieved using high-strength, low-resistance bonding methods such as specialized welding or brazing techniques. This permanent, resilient connection ensures that the pigtail does not become a point of high resistance or thermal failure, thus maintaining reliable conductivity and minimizing the risk of heat buildup in the brush holder.

Optimized Spring Load Consistency: The mechanical spring attached to the brush maintains the necessary contact pressure against the commutator. This pressure must be consistent throughout the life of the brush, from installation to the point of auto-stop. Brushes utilize precision-engineered, fatigue-resistant spring steel alloys. These springs are designed with carefully controlled force curves to deliver stable pressure, which is essential for suppressing brush bounce, eliminating chattering, and maintaining stable commutation. Consistent spring pressure directly translates to smooth operation and predictable wear rates, ensuring the tool performs reliably under various load conditions.

Commitment to Manufacturing Excellence and Quality:

The ability to deliver components that consistently meet the rigorous specifications of global power tool brands is founded on a commitment to quality management and advanced operational practices.

Jiangsu Hailing Carbon Products Co., Ltd. is strategically positioned in the supply chain as a prominent China Carbon Brushes For DCA Manufacturers and Grinder Carbon Brushes For DCA Suppliers. Guided by the long-held principle of "Integrity in Operation, Quality First" and a clear strategy focused on "Brand Building, Independent Innovation," the company has established a robust framework for high-volume, precision manufacturing. Its operations are characterized by adherence to comprehensive international quality standards, including the application of ISO 9001 for full-process quality control. This dedication ensures that every stage of manufacturing is precisely monitored for consistency and quality. The manufacturer’s internal processes are further enhanced by the adoption of an advanced ERP system. This sophisticated digital infrastructure provides real-time oversight of production, enabling high levels of batch consistency and end-to-end component traceability. This systemic approach to quality and efficiency ensures the company can supply the volume and technical precision required by major motor brands, securing its position within the competitive landscape for Wholesale Power Tools Carbon Brushes For DCA Manufacturers.

Performance and Reliability Validation:

To ensure brushes meet the operational standards expected by DCA users, manufacturers must subject their products to comprehensive validation testing that mimics real-world use conditions.

Accelerated Endurance and Wear Testing: Carbon brushes are tested on specialized motor rigs that subject them to continuous operation at maximum rated speed, high current load, and peak operating temperature. This accelerated testing measures the precise wear rate of the carbon material, the stability of the contact voltage, and the overall service life under controlled, repeatable conditions. This data is essential for accurate service life prediction, providing users and distributors with reliable information on component longevity and maintenance scheduling. This thorough validation process ensures the product delivers its promised long-lasting durability.

Electrical Noise and Commutation Stability Analysis: Detailed electrical analysis is conducted to measure the quality of commutation throughout the motor’s speed and load range. Equipment monitors for destructive arcing, sparking, and the presence of unwanted electrical noise, including radio frequency interference RFI. Testing ensures that the brush material formulation delivers optimal electrical transfer stability, which is essential for maintaining smooth operation and overall motor efficiency. Consistent commutation quality is a non-negotiable requirement for high-reliability power tool components.

Product Application Profile and Performance Attributes for DCA Power Tools:

This table outlines key material and performance characteristics engineered into carbon brushes for specific DCA power tool categories.

The manufacturer’s strategy continues to emphasize independent innovation and the rigorous practice of lean management throughout its production processes. This progressive approach allows for rapid adaptation to new motor designs and evolving power tool industry specifications, ensuring that the components remain at the forefront of performance technology. By continually refining its material formulations and operational efficiencies, the company reinforces its ability to compete globally, delivering the high level of quality and consistency required for Power Tools Carbon Brushes For DCA and other leading motor brands.
